Attributes
| Ssp Category | swivel-nut-fittings-sae-37-flared |
|---|---|
| Ssp Subcategory | swivel-nut-female-connector-sae-37--flared |
| Part Number | js12fc-1 |
Description
SAE 37° Flared Swivel Nut Female Connector, 3/4 SAE 37° Flared Swivel x 3/4-14 FNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Female SAE 37° Swivel |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 3/4-14 |
| Brand Series | SAE 37° Flared |
| Shape | Straight |
| Tube OD | 3/4 in |
| End Connections | SAE 37° Flared Swivel x FNPT |
| Production Category | 1 |
| End Connection Type | Female SAE 37° Flare Swivel by Female National Pipe Thread |

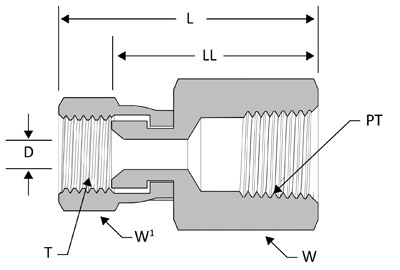

| D | 0.61 in |
| T | 1 1/16-12 |
| L | 2.28 in |
| LL | 1.72 in |
| PT | 3/4-14 |
| W Hex | 1 3/8 in |
| W1 Hex | 1 1/4 in |
