Attributes
| Ssp Category | swivel-nut-fittings-sae-37-flared |
|---|---|
| Ssp Subcategory | swivel-nut-straight-thread-connector-sae-37--fla |
| Part Number | js12gc-m-1 |
Description
SAE 37° Flared Swivel Nut Straight Thread Connector, 3/4 SAE 37° Flared Swivel x 1 1/16-12 Male SAE, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Female SAE 37° Swivel |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 3/4 in |
| Brand Series | SAE 37° Flared |
| Shape | Straight |
| Tube OD | 3/4 in |
| End Connections | SAE 37° Flared Swivel x Male SAE |
| Production Category | 4 |
| End Connection Type | Female SAE 37° Flare Swivel by Male SAE Straight Thread |

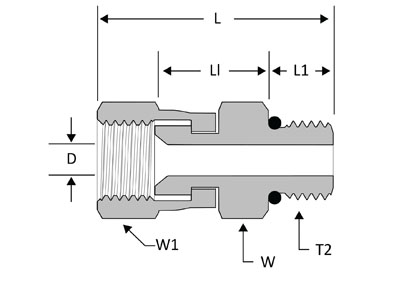

| D | 0.61 in |
| L | 2.14 in |
| L1 | 0.59 in |
| LL | 0.99 in |
| T1 | 1 1/16-12 |
| T2 | 1 1/16-12 |
| W Hex | 1 1/4 in |
| W1 Hex | 1 1/4 in |
