Attributes
| Ssp Category | connectors |
|---|---|
| Ssp Subcategory | male-bulkhead-connector-assembly-sae-37-flared-1 |
| Part Number | aj16bc |
Description
SAE 37° Flared Male Bulkhead Connector Assembly, 1 Male SAE 37° Flared x 1-11 1/2 MNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Male SAE 37° Flared |
| Connection 1 - Size | 1 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1-11 1/2 |
| Brand Series | SAE 37° Flared |
| Shape | Straight |
| Tube OD | 1 in |
| End Connections | Male SAE 37° Flared x MNPT |
| Production Category | 1 |
| Specialty | Bulkhead |
| End Connection Type | Male SAE 37° Flare by Male National Pipe Thread |

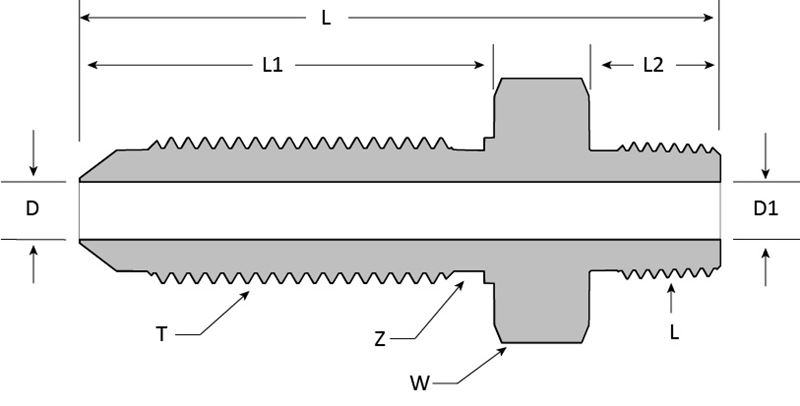

| D | 0.84 in |
| T | 1 5/16-12 |
| D1 | 0.84 in |
| L | 3.18 in |
| L1 | 1.75 in |
| L2 | 0.94 in |
| PT | 1-11 1/2 |
| W Hex | 1 5/8 in |
| Z | 1.31 in |
