Sae Tube Fitting Union Sae Tube Fitting · Large Hex Union Sae Tube Fitting

Part # AM10LHU-M, Large Hex Union - SAE - - SAE Flareless Tube Fitting

Scraped SKU: ssp-am10lhu-m-1 2026-06-05 01:19:41

Attributes

Ssp Categorysae-tube-fitting-union-sae-tube-fitting
Ssp Subcategorylarge-hex-union-sae-tube-fitting
Part Numberam10lhu-m-1

Description

SAE Flareless Large Hex Union, 5/8 SAE Flareless x 5/8 SAE Flareless, Alloy 400

Specifications

Body MaterialAlloy 400
Connection 1 - TypeSAE Flareless
Connection 1 - Size5/8 in
Connection 2 - TypeSAE Flareless
Connection 2 - Size5/8 in
Brand SeriesSAE Flareless
ShapeStraight
Tube OD5/8 in
End ConnectionsSAE Flareless x SAE Flareless
Production Category4
End Connection TypeSAE Flareless Tube End

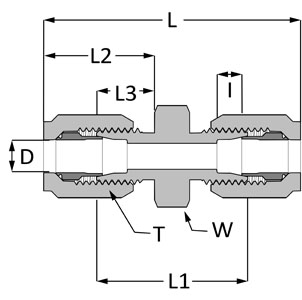

I0.35 in
L2.67 in
L11.61 in
L21.16 in
L30.63 in
W Hex1 1/8 in

PDF Documents

SSP Industrial Fittings Catalog Open PDF
Installation-Instructions-Straight-Thread-Fittings Open PDF
Tube-Fittings--SAE-Flareless-Install-instructions Open PDF
