Attributes
| Ssp Category | sae-tube-fitting-union-sae-tube-fitting |
|---|---|
| Ssp Subcategory | reducing-large-hex-union-sae-tube-fitting-0 |
| Part Number | am4-2lhu-m |
Description
SAE Flareless Reducing Large Hex Union, 1/4 SAE Flareless x 1/8 SAE Flareless, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | SAE Flareless |
| Connection 2 - Size | 1/8 in |
| Brand Series | SAE Flareless |
| Shape | Straight |
| D_NUM | 0.20 |
| Tube OD | 1/4 x 1/8 in |
| End Connections | SAE Flareless x SAE Flareless |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End |

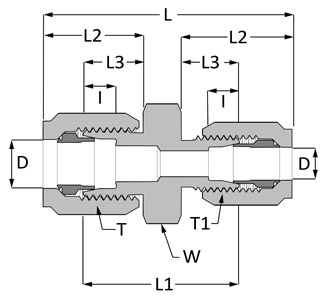

| D | 0.20 |
| I | 0.23 in |
| L | 1.84 in |
| L1 | 1.10 in |
| L2 | 0.87 in |
| T | 7/16-20 |
| T1 | 5/16-24 |
| W Hex | 11/16 in |
