Attributes
| Ssp Category | sae-tube-fitting-union-sae-tube-fitting |
|---|---|
| Ssp Subcategory | r-sae-tube-fitting-bulkhead-union-sae-tube-fitting |
| Part Number | am24bu-m |
Description
SAE Flareless Bulkhead Bulkhead Union, 1 1/2 SAE Flareless x 1 1/2 SAE Flareless, Alloy 400
Specifications
| Product Line | Industrial |
|---|---|
| Body Material | Alloy 400 |
| Product Configuration | Bulkhead Union |
| Group | Fitting |
| Type | Tube |
| Category | SAE Flareless |
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 1 1/2 in |
| Connection 2 - Type | SAE Flareless |
| Connection 2 - Size | 1 1/2 in |
| Brand Series | SAE Flareless |
| Shape | Straight |
| Tube OD | 1 1/2 in |
| End Connections | SAE Flareless x SAE Flareless |
| Production Category | 4 |
| Product Descriptions | SAE Flareless Bulkhead Union |
| Description Text | Bulkhead Union |

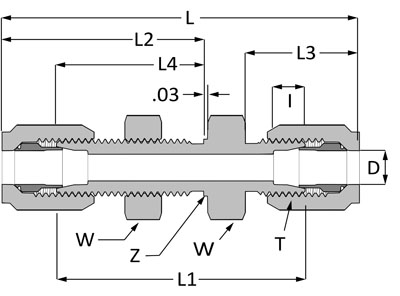

| I | 0.49 in |
| L | 4.31 in |
| L1 | 2.87 in |
| L2 | 2.28 in |
| L3 | 1.41 in |
| L4 | 1.56 in |
| W Hex | 2 1/8 in |
| Z | 1.88 in |
