Attributes
| Ssp Category | connector-sae-tube-fitting |
|---|---|
| Ssp Subcategory | female-connector-sae-tube-fitting |
| Part Number | am2fc-m |
Description
SAE Flareless Female Connector, 1/8 SAE Flareless x 1/8-27 FNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 1/8 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1/8-27 |
| Brand Series | SAE Flareless |
| Shape | Straight |
| Tube OD | 1/8 in |
| End Connections | SAE Flareless x FNPT |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End by Female National Pipe Thread |

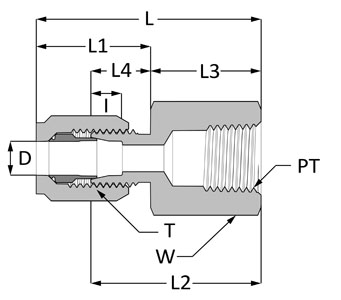

| D | 0.09 in |
| T | 5/16-24 |
| I | 0.19 in |
| L | 1.36 in |
| L1 | 0.69 in |
| L2 | 1.06 in |
| L3 | 0.67 in |
| L4 | 0.38 in |
| PT | 1/8-27 |
| W Hex | 9/16 in |
