Connector Sae Tube Fitting · Long Straight Thread Connector Sae Tube Fitting

Part # AM16LGC-M, Long Straight Thread Connector - SAE Flareless Tube Fitting

Scraped SKU: ssp-am16lgc-m-1 2026-06-05 01:19:56

Attributes

Ssp Categoryconnector-sae-tube-fitting
Ssp Subcategorylong-straight-thread-connector-sae-tube-fitting
Part Numberam16lgc-m-1

Description

SAE Flareless Long Straight Thread Connector, 1 SAE Flareless x 1 1/16-12 Male SAE, Alloy 400

Specifications

Body MaterialAlloy 400
Connection 1 - TypeSAE Flareless
Connection 1 - Size1 in
Connection 2 - TypeMale SAE Straight Thread
Connection 2 - Size1 in
Brand SeriesSAE Flareless
ShapeStraight
Tube OD1 in
End ConnectionsSAE Flareless x Male SAE
Production Category4
End Connection TypeSAE Flareless Tube End by Male SAE Straight Thread

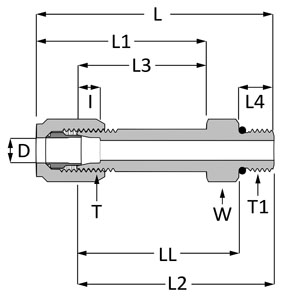

I0.42 in
L4.57 in
L13.43 in
L23.91 in
L32.77 in
L40.59 in
LL3.27 in
T Thread1 5/16-12
T11 5/16-12
W Hex1 1/2 in

PDF Documents

SSP Industrial Fittings Catalog Open PDF
Installation-Instructions-Straight-Thread-Fittings Open PDF
Tube-Fittings--SAE-Flareless-Install-instructions Open PDF
