Attributes
| Ssp Category | connector-sae-tube-fitting |
|---|---|
| Ssp Subcategory | male-bulkhead-connector-sae-tube-fitting |
| Part Number | am3bc-1 |
Description
SAE Flareless Male Bulkhead Connector, 3/16 SAE Flareless x 1/8-27 MNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 3/16 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1/8-27 |
| Brand Series | SAE Flareless |
| Shape | Straight |
| Tube OD | 3/16 in |
| End Connections | SAE Flareless x MNPT |
| Production Category | 4 |
| Specialty | Bulkhead |
| End Connection Type | SAE Flareless Tube End by Male National Pipe Thread |

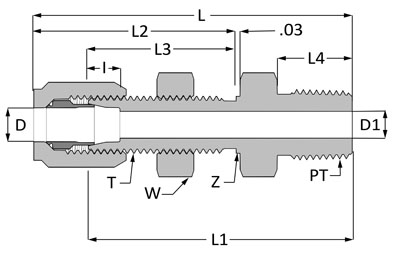

| D | 0.13 in |
| T | 3/8-24 |
| D1 | 0.19 in |
| I | 0.23 in |
| L | 2.03 in |
| L1 | 1.76 in |
| L2 | 1.40 in |
| L3 | 1.06 in |
| L4 | 0.38 in |
| PT | 1/8-27 |
| W Hex | 5/8 in |
| Z | 0.38 in |
