Attributes
| Ssp Category | cross-sae-tube-fitting |
|---|---|
| Ssp Subcategory | cross-sae-tube-fitting-0 |
| Part Number | am8x |
Description
SAE Flareless Tube Fittings, , Cross, 1/2 SAE Flareless x 1/2 SAE Flareless x 1/2 SAE Flareless x 1/2 SAE Flareless, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 1/2 in |
| Connection 2 - Type | SAE Flareless |
| Connection 2 - Size | 1/2 in |
| Connection 3 - Type | SAE Flareless |
| Connection 3 - Size | 1/2 in |
| Connection 4 - Type | SAE Flareless |
| Connection 4 - Size | 1/2 in |
| Brand Series | SAE Flareless |
| Shape | Cross |
| Tube OD | 1/2 in |
| End Connections | SAE Flareless x SAE Flareless x SAE Flareless x SAE Flareless |
| Production Category | 1 |
| End Connection Type | SAE Flareless Tube End |

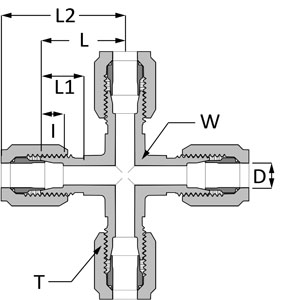

| D | 0.42 in |
| I | 0.31 in |
| L | 1.25 in |
| L1 | 0.55 in |
| L2 | 1.75 in |
| W Wrench Flat | 3/4 in |
