Attributes
| Ssp Category | tee-sae-tube-fitting |
|---|---|
| Ssp Subcategory | bulkhead-run-tee-sae-tube-fitting |
| Part Number | am12brt |
Description
SAE Flareless Tube Fittings, , Bulkhead Run Tee, 3/4 SAE Flareless x 3/4 SAE Flareless x 3/4 SAE Flareless, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | SAE Flareless |
| Connection 2 - Size | 3/4 in |
| Connection 3 - Type | SAE Flareless |
| Connection 3 - Size | 3/4 in |
| Brand Series | SAE Flareless |
| Shape | Tee |
| Tube OD | 3/4 in |
| End Connections | SAE Flareless x SAE Flareless x SAE Flareless |
| Production Category | 4 |
| Specialty | Bulkhead |
| End Connection Type | SAE Flareless Tube End |

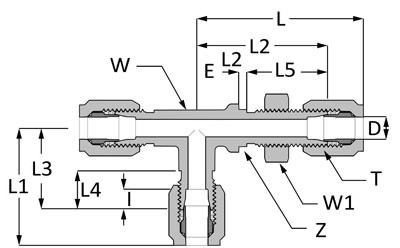

| D Through Hole | 0.66 in |
| I | 0.35 in |
| L | 3.04 in |
| L1 | 2.14 in |
| L2 | 2.48 in |
| L3 | 1.58 in |
| L4 | 0.67 in |
| L5 | 1.38 in |
| W Wrench Flat | 1 1/16 in |
| W1 Hex | 1 3/8 in |
| Z | 1.06 in |
