Attributes
| Ssp Category | tee-sae-tube-fitting |
|---|---|
| Ssp Subcategory | female-branch-tee-sae-tube-fitting |
| Part Number | am20ttf-m-1 |
Description
SAE Flareless Tube Fittings, , Female Branch Tee, 1 1/4 SAE Flareless x 1 1/4 SAE Flareless x 1 1/4-11 1/2 FNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 1 1/4 in |
| Connection 2 - Type | SAE Flareless |
| Connection 2 - Size | 1 1/4 in |
| Connection 3 - Type | Female National Pipe Thread |
| Connection 3 - Size | 1 1/4-11 1/2 |
| Brand Series | SAE Flareless |
| Shape | Tee |
| Tube OD | 1 1/4 in |
| End Connections | SAE Flareless x SAE Flareless x FNPT |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End by Female National Pipe Thread |

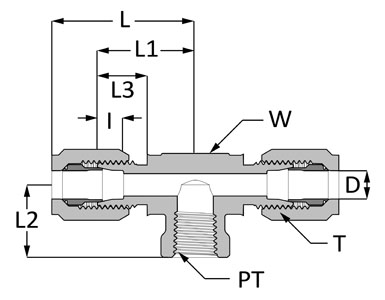

| D | 1.09 in |
| T | 1 5/8-12 |
| I | 0.42 in |
| L | 2.80 in |
| L1 | 2.08 in |
| L2 | 1.70 in |
| L3 | 0.67 in |
| PT | 1 1/4-11 1/2 |
| W Wrench Flat | 1 7/8 in |
