Attributes
| Ssp Category | tee-sae-tube-fitting |
|---|---|
| Ssp Subcategory | male-branch-tee-sae-tube-fitting |
| Part Number | am24ttm-m |
Description
SAE Flareless Tube Fittings, , Male Branch Tee, 1 1/2 SAE Flareless x 1 1/2 SAE Flareless x 1 1/2-11 1/2 MNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 1 1/2 in |
| Connection 2 - Type | SAE Flareless |
| Connection 2 - Size | 1 1/2 in |
| Connection 3 - Type | Male National Pipe Thread |
| Connection 3 - Size | 1 1/2-11 1/2 |
| Brand Series | SAE Flareless |
| Shape | Tee |
| Tube OD | 1 1/2 in |
| End Connections | SAE Flareless x SAE Flareless x MNPT |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End by Male National Pipe Thread |

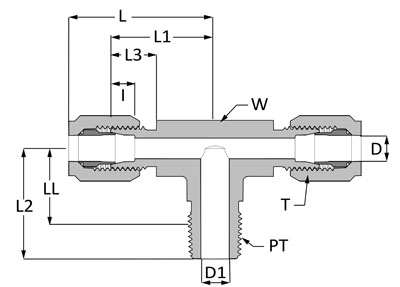

| D | 1.34 in |
| D1 | 1.50 in |
| I | 0.49 in |
| L | 2.74 in |
| L1 | 2.02 in |
| L2 | 2.64 in |
| L3 | 0.67 in |
| LL | 2.05 in |
| PT | 1 1/2-11 1/2 |
| T Thread | 1 7/8-12 |
| W Wrench Flat | 1 7/8 in |
