Attributes
| Ssp Category | 45--elbow-sae-tube-fitting |
|---|---|
| Ssp Subcategory | 45--female-elbow-sae-tube-fitting |
| Part Number | am10fe-45 |
Description
SAE Flareless 45° Female Elbow, 5/8 SAE Flareless x 1/2-14 FNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1/2-14 |
| Brand Series | SAE Flareless |
| Shape | Elbow |
| Tube OD | 5/8 in |
| End Connections | SAE Flareless x FNPT |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End by Female National Pipe Thread |

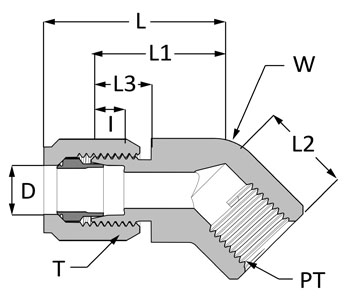

| D | 0.50 in |
| T | 7/8-14 |
| I | 0.35 in |
| L | 1.61 in |
| L1 | 1.08 in |
| L2 | 0.94 in |
| L3 | 0.61 in |
| PT | 1/2-14 |
| W Wrench Flat | 1 1/16 in |
