Attributes
| Ssp Category | 45--elbow-sae-tube-fitting |
|---|---|
| Ssp Subcategory | 45--male-elbow-sae-tube-fitting |
| Part Number | am12me-45-m |
Description
SAE Flareless 45° Male Elbow, 3/4 SAE Flareless x 3/4-14 MNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 3/4 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 3/4-14 |
| Brand Series | SAE Flareless |
| Shape | Elbow |
| Tube OD | 3/4 in |
| End Connections | SAE Flareless x MNPT |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End by Male National Pipe Thread |

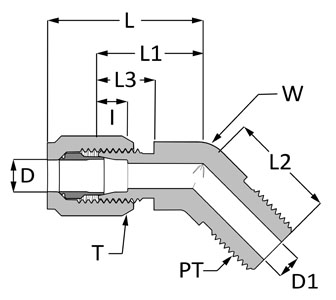

| D | 0.61 in |
| D1 | 0.72 in |
| I | 0.35 in |
| L | 1.83 in |
| L1 | 1.27 in |
| L2 | 1.20 in |
| L3 | 0.67 in |
| PT | 3/4-14 |
| T Thread | 1 1/16-12 |
| W Wrench Flat | 1 1/16 in |
