45 Elbow Sae Tube Fitting · 45 Straight Thread Elbow Sae Tube Fitting

Part # AM3GE-45-M, 45° Straight Thread Elbow - SAE Flareless Tube Fitting

Scraped SKU: ssp-am3ge-45-m 2026-06-05 01:20:58

Attributes

Ssp Category45--elbow-sae-tube-fitting
Ssp Subcategory45--straight-thread-elbow-sae-tube-fitting
Part Numberam3ge-45-m

Description

SAE Flareless 45° Straight Thread Elbow, 3/16 SAE Flareless x 3/8-24 Male SAE, Alloy 400

Specifications

Body MaterialAlloy 400
Connection 1 - TypeSAE Flareless
Connection 1 - Size3/16 in
Connection 2 - TypeMale SAE Straight Thread
Connection 2 - Size3/16 in
Brand SeriesSAE Flareless
ShapeElbow
Tube OD3/16 in
End ConnectionsSAE Flareless x Male SAE
Production Category4
End Connection TypeSAE Flareless Tube End by Male SAE Straight Thread

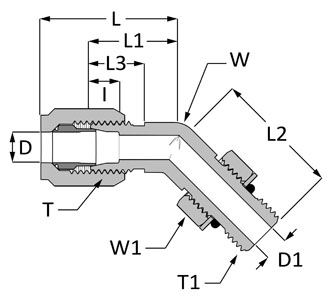

D1 Through Hole0.13 in
I0.23 in
L0.98 in
L10.64 in
L20.88 in
L30.41 in
T13/8-24
W Wrench Flat7/16 in
W1 Hex1/2 in

PDF Documents

SSP Industrial Fittings Catalog Open PDF
Installation-Instructions-Straight-Thread-Fittings Open PDF
Tube-Fittings--SAE-Flareless-Install-instructions Open PDF
