Attributes
| Ssp Category | 45--elbow-sae-tube-fitting |
|---|---|
| Ssp Subcategory | 45--swivel-nut-elbow-sae-tube-fitting |
| Part Number | am5se-45-m |
Description
SAE Flareless 45° Swivel Nut Elbow, 5/16 SAE Flareless x 5/16 SAE Flareless, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 5/16 in |
| Connection 2 - Type | SAE Flareless Swivel |
| Connection 2 - Size | 5/16 in |
| Brand Series | SAE Flareless |
| Shape | Elbow |
| Tube OD | 5/16 in |
| End Connections | SAE Flareless x SAE Flareless |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End by SAE Flareless Swivel |

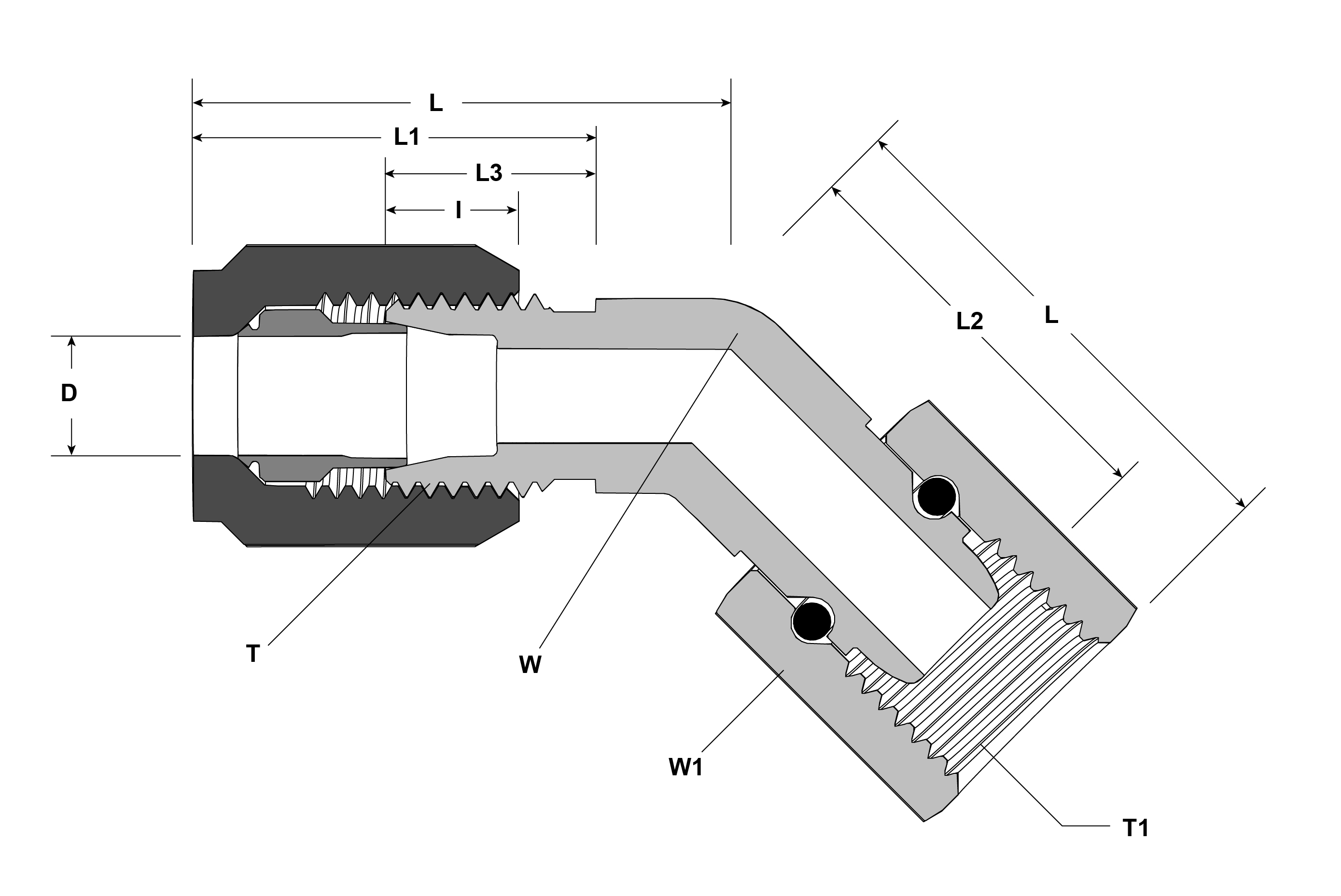

| I | 0.25 in |
| L | 0.95 in |
| L1 | 0.75 in |
| L2 | 0.70 in |
| L3 | 0.44 in |
| L4 | 1.05 in |
| LL | 0.70 in |
| T Thread | 1/2-20 |
| T1 | 1/2-20 |
| W Wrench Flat | 9/16 in |
| W1 Hex | 5/8 in |
