Attributes
| Ssp Category | 45--elbow-sae-tube-fitting |
|---|---|
| Ssp Subcategory | 45--bulkhead-union-elbow-sae-tube-fitting |
| Part Number | am3be-45 |
Description
SAE Flareless 45° Bulkhead Union Elbow, 3/16 SAE Flareless x 3/16 SAE Flareless, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 3/16 in |
| Connection 2 - Type | SAE Flareless |
| Connection 2 - Size | 3/16 in |
| Brand Series | SAE Flareless |
| Shape | Elbow |
| Tube OD | 3/16 in |
| End Connections | SAE Flareless x SAE Flareless |
| Production Category | 4 |
| Specialty | Bulkhead |
| End Connection Type | SAE Flareless Tube End |

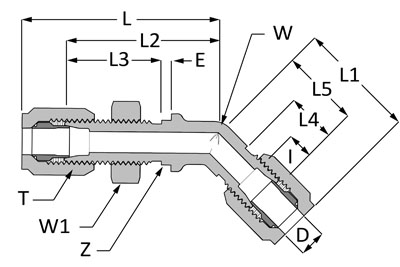

| E | 0.094 in |
| I | 0.23 in |
| L | 1.67 in |
| L1 | 0.98 in |
| L2 | 1.33 in |
| L3 | 0.88 in |
| L4 | 0.41 in |
| L5 | 0.64 in |
| W Wrench Flat | 7/16 in |
| W1 Hex | 5/8 in |
| Z | 0.38 in |
