Attributes
| Ssp Category | 90--elbow-sae-tube-fittings |
|---|---|
| Ssp Subcategory | 90-extra-long-male-elbow-sae-tube-fitting |
| Part Number | am10llme-m-1 |
Description
SAE Flareless Extra Long Male Elbow, 5/8 SAE Flareless x 1/2 MNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1/2-14 |
| Brand Series | SAE Flareless |
| Shape | Elbow |
| Tube OD | 5/8 in |
| End Connections | SAE Flareless x MNPT |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End by Male National Pipe Thread |

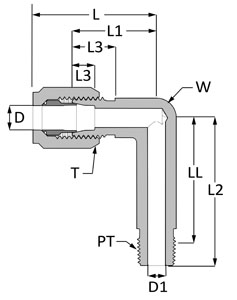

| D Through Hole | 0.50 in |
| D1 Through Hole | 0.53 in |
| I | 0.35 in |
| L | 1.95 in |
| L1 | 1.42 in |
| L2 | 2.87 in |
| L3 | 0.61 in |
| LL | 2.41 in |
| PT | 1/2-14 |
| T Thread | 7/8-14 |
| W Wrench Flat | 7/8 in |
