Attributes
| Ssp Category | 90--elbow-sae-tube-fittings |
|---|---|
| Ssp Subcategory | 90-female-elbow-sae-tube-fitting |
| Part Number | am14fe-m-1 |
Description
SAE Flareless Female Elbow, 7/8 SAE Flareless x 3/4-14 FNPT, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 7/8 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 3/4-14 |
| Brand Series | SAE Flareless |
| Shape | Elbow |
| Tube OD | 7/8 in |
| End Connections | SAE Flareless x FNPT |
| Production Category | 4 |
| End Connection Type | SAE Flareless Tube End by Female National Pipe Thread |

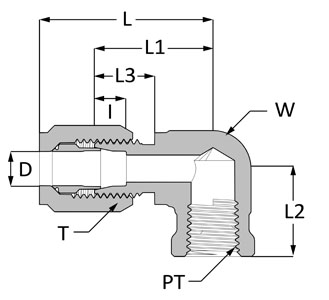

| D | 0.72 in |
| T | 1 3/16-12 |
| I | 0.35 in |
| L | 2.15 in |
| L1 | 1.62 in |
| L2 | 1.42 in |
| L3 | 0.67 in |
| PT | 3/4-14 |
| W Wrench Flat | 1 5/16 in |
