90 Elbow Sae Tube Fittings · Straight Thread Elbow Sae Tube Fitting

Part # AM32GE-M, 90° Straight Thread Elbow - SAE Flareless Tube Fitting

Scraped SKU: ssp-am32ge-m-1 2026-06-05 01:21:13

Attributes

Ssp Category90--elbow-sae-tube-fittings
Ssp Subcategorystraight-thread-elbow-sae-tube-fitting
Part Numberam32ge-m-1

Description

SAE Flareless Straight Thread Elbow, 2 SAE Flareless x 2 1/2-12 Male SAE, Alloy 400

Specifications

Body MaterialAlloy 400
Connection 1 - TypeSAE Flareless
Connection 1 - Size2 in
Connection 2 - TypeMale SAE Straight Thread
Connection 2 - Size2 in
Brand SeriesSAE Flareless
ShapeElbow
Tube OD2 in
End ConnectionsSAE Flareless x Male SAE
Production Category4
End Connection TypeSAE Flareless Tube End by Male SAE Straight Thread

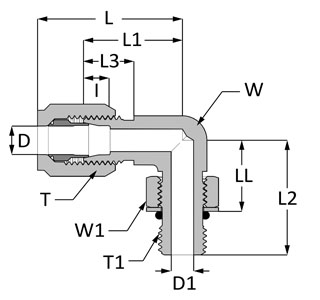

T2 1/2-12
D11.81 in
I0.49 in
L3.29 in
L12.45 in
L22.89 in
L30.67 in
LL2.24 in
T12 1/2-12
W Wrench Flat2 1/2 in
W1 Hex2 3/4 in
