Attributes
| Ssp Category | flare-fitting-adapter-sae-tube-fitting |
|---|---|
| Ssp Subcategory | ting-flare-bulkhead-union-adapter-sae-tube-fitting |
| Part Number | amj20bu |
Description
SAE Flareless Bulkhead Bulkhead Union, 1 1/4 SAE Flareless x 1 1/4 SAE Flared, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Flareless |
| Connection 1 - Size | 1 1/4 in |
| Connection 2 - Type | Male SAE 37° Flared |
| Connection 2 - Size | 1 1/4 in |
| Brand Series | SAE Flareless |
| Shape | Straight |
| Tube OD | 1 1/4 in |
| End Connections | SAE Flareless x SAE Flared |
| Production Category | 4 |
| Specialty | Bulkhead |
| End Connection Type | SAE Flareless Tube End by SAE Male 37° Flare |

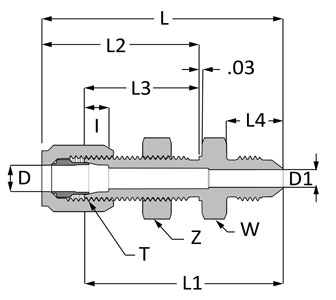

| D1 | 1.08 in |
| I | 0.42 in |
| L | 3.66 in |
| L1 | 3.07 in |
| L2 | 2.28 in |
| L3 | 1.56 in |
| L4 | 0.96 in |
| W Hex | 1 7/8 in |
| Z | 1.63 in |
