Attributes
| Ssp Category | o-ring-face-seal-tail-piece-hp-orfs |
|---|---|
| Ssp Subcategory | male-pipe-tail-piece-hp-orfs |
| Part Number | q504r-6-m |
Description
High Pressure ORFS Union, Tailpiece, 1 1/4 in Tail Piece x 1 1/4-11 1/2 MNPT Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Tail Piece |
| Connection 1 - Size | High Pressure Union Tail Piece 6 |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1 1/4-11 1/2 |
| Brand Series | Soft-Seal High Pressure Union |
| Shape | Straight |
| Pipe Size | 1 1/4 in |
| End Connections | Tail Piece x MNPT |
| Production Category | 4 |
| End Connection Type | Soft-Seal HP Tail Piece by Male National Pipe Thread |

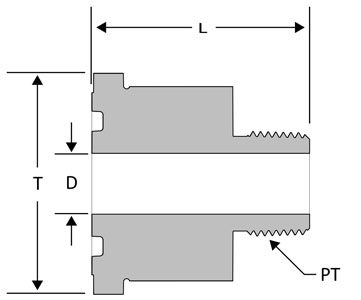

| D | 1 3/16 in |
| L | 2 9/16 in |
| PT | 1 1/4-11 1/2 |
| T Thread | 2 5/8 in |
