Attributes
| Ssp Category | o-ring-face-seal-tail-piece-hp-orfs |
|---|---|
| Ssp Subcategory | male-straight-thread-tail-piece-high-pressure-orfs |
| Part Number | q509r-1-0-m |
Description
High Pressure Male SAE ORFS Tail Piece, 1/4 in Tail Piece x 7/16-20 Male SAE, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Tail Piece |
| Connection 1 - Size | High Pressure Union Tail Piece 1 |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 1/4 in |
| Brand Series | Soft-Seal High Pressure Union |
| Shape | Straight |
| Pipe Size | 1/4 in |
| Tube Size | 3/8 |
| End Connections | Tail Piece x Male SAE |
| Production Category | 4 |
| End Connection Type | Soft-Seal HP Tail Piece by Male SAE Straight Thread |

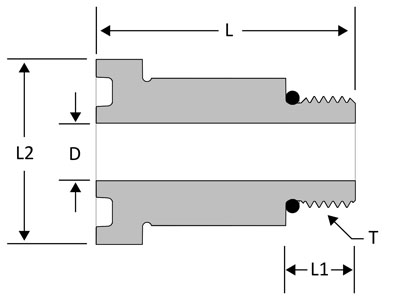

| D | 11/64 in |
| F | 1 1/16 in |
| T | 7/16-20 |
| L | 1 1/2 in |
| L1 | 0.36 in |
