Attributes
| Ssp Category | o-ring-face-seal-tail-piece-hp-orfs |
|---|---|
| Ssp Subcategory | tube-socket-tail-piece-hp-orfs |
| Part Number | q408r-3 |
Description
Soft-Seal HP Tube Socket Tail Piece, 1/2 Tail Piece x 1/2 Tube Socket Weld, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Tail Piece |
| Connection 1 - Size | High Pressure Union Tail Piece 3 |
| Connection 2 - Type | Tube Socket Weld |
| Connection 2 - Size | 3/4 in |
| Brand Series | Soft-Seal High Pressure Union |
| Shape | Straight |
| Tube Size | 3/4 |
| End Connections | Tail Piece x Tube Socket Weld |
| Production Category | 3 |
| End Connection Type | Soft-Seal HP Tail Piece by Tube Socket Weld |

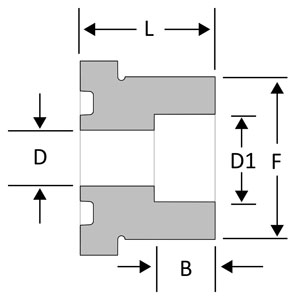

| D | 3/4 in |
| F | 1 5/8 in |
| B | 1/2 in |
| D1 | 1/2 in |
| L | 1 1/8 in |
