Attributes
| Ssp Category | o-ring-face-seal-threaded-piece-hp-orfs |
|---|---|
| Ssp Subcategory | female-pipe-threaded-piece-hp |
| Part Number | q503t-6 |
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Threaded Piece |
| Connection 1 - Size | High Pressure Union Threaded Piece 6 |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1 1/4-11 1/2 |
| Brand Series | Soft-Seal High Pressure Union |
| Shape | Straight |
| Pipe Size | 1 1/4 in |
| End Connections | Threaded Piece x FNPT |
| Production Category | 4 |
| End Connection Type | Soft-Seal HP Threaded Piece by Female National Pipe Thread |

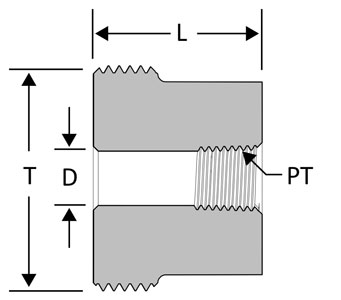

| D | 1 3/16 in |
| L | 2 in |
| PT | 1 1/4-11 1/2 |
| T Thread | 2 3/4-12 |
