Attributes
| Ssp Category | 90--elbow-nav-sea-orfs |
|---|---|
| Ssp Subcategory | female-pipe-elbow-nav-sea-orfs |
| Part Number | p10-8fe |
Description
Soft-Seal Nav-Sea Female Pipe Elbow, 5/8 Male Face-Seal x 1/2-14 FNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Nav-Sea Male O-ring Face Seal |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1/2-14 |
| Brand Series | Soft-Seal Nav-Sea |
| Shape | Straight |
| Tube OD | 5/8 in |
| End Connections | Male Face-Seal x FNPT |
| Production Category | 4 |
| End Connection Type | Nav-Sea Male O-ring Face by Female National Pipe Thread |

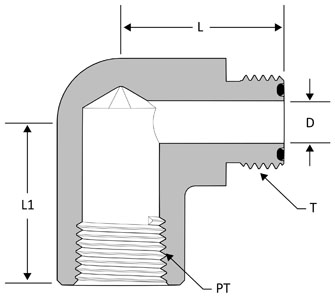

| D | 0.547 in |
| L | 1.44 in |
| L1 | 1.44 in |
| PT | 1/2-14 |
| T Thread | 1-14 |
