Attributes
| Ssp Category | component--nav-sea-orfs |
|---|---|
| Ssp Subcategory | tail-piece-sleeve-nav-sea-orfs |
| Part Number | p10s |
Description
Soft-Seal Nav-Sea Tail Piece Sleeve, 5/8 Female Face-Seal x 5/8 Tube Stub, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Nav-Sea Female O-ring Face Seal |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | Tube Socket Weld |
| Connection 2 - Size | 5/8 in |
| Brand Series | Soft-Seal Nav-Sea |
| Shape | Straight |

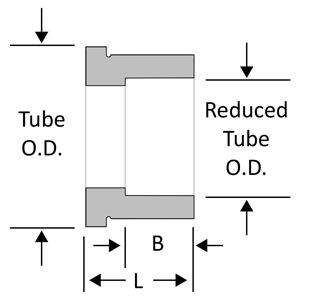

| Tube OD | 5/8 in |
| Reduced Tube OD | 5/8 in |
| End Connections | Female Face-Seal x Tube Stub |
| CPV P/N | H849R-10-SS316L |
| Production Category | 1 |
| End Connection Type | Nav-Sea O-ring Face Seal Flange by Tube Socket Weld |
| B | 0.38 in |
| L | 0.63 in |
| Tube ID | 0.55 in |
