Attributes
| Ssp Category | tee-nav-sea-orfs |
|---|---|
| Ssp Subcategory | female-pipe-run-tee-nav-sea-orfs |
| Part Number | p4-2-4tft-m |
Description
Soft-Seal Nav-Sea Face Seal Fittings, , Female Pipe Run Tee, 1/4 Male Face-Seal x 1/8-27 FNPT x 1/4 Male Face-Seal, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Nav-Sea Male O-ring Face Seal |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1/8-27 |
| Connection 3 - Type | Nav-Sea Male O-ring Face Seal |
| Connection 3 - Size | 1/4 in |
| Brand Series | Soft-Seal Nav-Sea |
| Shape | Tee |
| Tube OD | 1/4 in |
| End Connections | Male Face-Seal x FNPT x Male Face-Seal |
| Production Category | 4 |
| End Connection Type | Nav-Sea Male O-ring Face by Female National Pipe Thread |

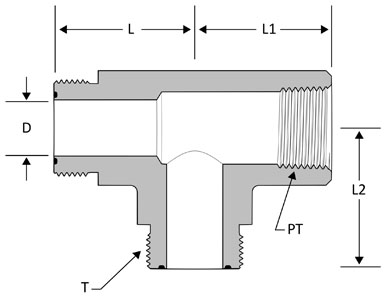

| D | 0.188 in |
| T | 9/16-18 |
| L | 0.81 in |
| L1 | 0.81 in |
| L2 | 0.81 in |
| PT | 1/8-27 |
