Attributes
| Ssp Category | union-nav-sea-orfs |
|---|---|
| Ssp Subcategory | bulkhead-union-nav-sea-orfs |
| Part Number | p16bu |
Description
Soft-Seal Nav-Sea Bulkhead Bulkhead Union, 1 Male Face-Seal x 1 Male Face-Seal, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Nav-Sea Male O-ring Face Seal |
| Connection 1 - Size | 1 in |
| Connection 2 - Type | Tube Socket Weld |
| Connection 2 - Size | 1 in |
| Brand Series | Soft-Seal Nav-Sea |
| Shape | Straight |
| Tube OD | 1 in |
| End Connections | Male Face-Seal x Male Face-Seal |
| Production Category | 3 |
| End Connection Type | Nav-Sea Male O-ring Face |

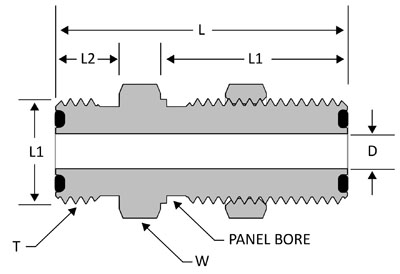

| D | 0.875 in |
| T | 1 1/2-12 |
| L | 2.36 in |
| L1 | 1.36 in |
| L2 | 0.678 in |
| L3 | 1.380 in |
| Panel Bore | 1.53 in |
| W Hex | 1 5/8 in |
