Attributes
| Ssp Category | union-nav-sea-orfs |
|---|---|
| Ssp Subcategory | union-nav-sea-orfs-0 |
| Part Number | p4u-m |
Description
Soft-Seal Nav-Sea Union, 1/4 Male Face-Seal x 1/4 Male Face-Seal, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | Nav-Sea Male O-ring Face Seal |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | Tube Socket Weld |
| Connection 2 - Size | 1/4 in |
| Brand Series | Soft-Seal Nav-Sea |
| Shape | Straight |
| Tube OD | 1/4 in |
| End Connections | Male Face-Seal x Male Face-Seal |
| Production Category | 4 |
| End Connection Type | Nav-Sea Male O-ring Face by Tube Socket Weld |

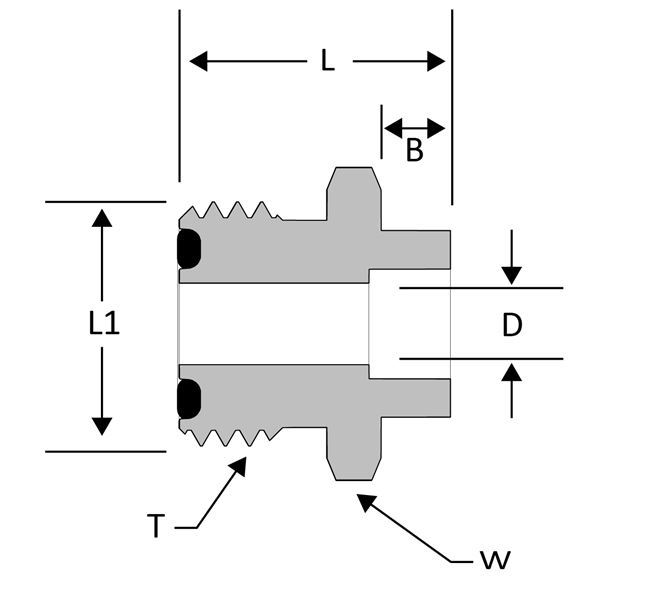

| D | 0.188 in |
| T | 9/16-18 |
| B | 0.19 in |
| L | 0.63 in |
| L1 | 0.48 in |
| W Hex | 5/8 in |
