Al Sae O Ring Face Seal Fittings 45 Elbow Sae Orfs · 45 Bulkhead Elbow Sae Orfs

Part # S20BEX-45, 45° Bulkhead Elbow - SAE ORFS

Scraped SKU: ssp-s20bex-45-1 2026-06-05 01:22:28

Attributes

Ssp Categoryal-sae-o-ring-face-seal-fittings-45-elbow-sae-orfs
Ssp Subcategory45--bulkhead-elbow-sae-orfs
Part Numbers20bex-45-1

Description

Soft-Sea SAE 45° Bulkhead Elbow, 1 1/4 Male Face-Seal x 1 1/4 Male Face-Seal, 316 SS

Specifications

Body Material316 SS
Connection 1 - TypeSAE Male O-ring Face Seal
Connection 1 - Size1 1/4 in
Connection 2 - TypeSAE Male O-ring Face Seal
Connection 2 - Size1 1/4 in
Brand SeriesSoft-Seal SAE
ShapeElbow
Tube OD1 1/4 in
End ConnectionsMale Face-Seal x Male Face-Seal
Production Category4
SpecialtyBulkhead
End Connection TypeSAE Male O-ring Face Seal

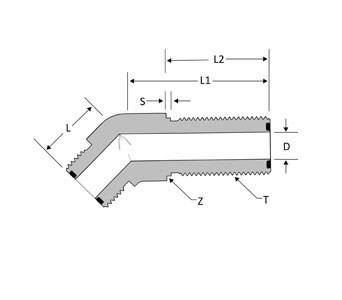

D1.024 in
T1 11/16-12
L1.26 in
L12.64 in
L21.66 in
S0.06 in
W1 5/8 in
Z1.69 in
