90 Elbow Sae Orfs · Bulkhead Elbow Sae Orfs

Part # S12BEX-M, 90° Bulkhead Elbow - SAE ORFS

Scraped SKU: ssp-s12bex-m 2026-06-05 01:22:30

Attributes

Ssp Category90--elbow-sae-orfs
Ssp Subcategorybulkhead-elbow-sae-orfs
Part Numbers12bex-m

Specifications

Body MaterialAlloy 400
Connection 1 - TypeSAE Male O-ring Face Seal
Connection 1 - Size3/4 in
Connection 2 - TypeSAE Male O-ring Face Seal
Connection 2 - Size3/4 in
Brand SeriesSoft-Seal SAE
ShapeElbow
Tube OD3/4 in
End ConnectionsMale Face-Seal x Male Face-Seal
Production Category4
End Connection TypeSAE Male O-ring Face Seal

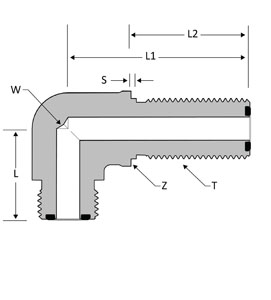

D0.609 in
T1 3/16-12
L1.52 in
L12.65 in
L21.64 in
S0.06 in
W Wrench Flat1 3/16 in
Z1.19 in

PDF Documents

SSP Industrial Fittings Catalog Open PDF
