Attributes
| Ssp Category | 90--elbow-sae-orfs |
|---|---|
| Ssp Subcategory | male-elbow-sae-orfs |
| Part Number | s4-6me |
Description
Soft-Sea SAE Male Elbow, 1/4 Male Face-Seal x 3/8-18 MNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Male O-ring Face Seal |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 3/8-18 |
| Brand Series | Soft-Seal SAE |
| Shape | Elbow |
| Tube OD | 1/4 in |
| End Connections | Male Face-Seal x MNPT |
| Production Category | 1 |
| End Connection Type | SAE Male O-ring Face Seal by Male National Pipe Thread |

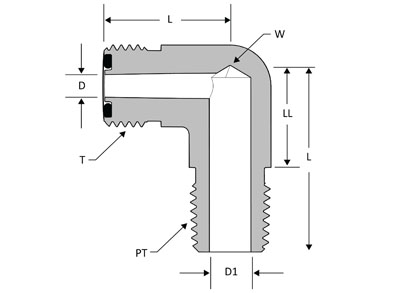

| D | 0.172 in |
| T | 9/16-18 |
| D1 | 0.406 in |
| L | 0.97 in |
| L1 | 1.22 in |
| LL | 0.87 in |
| PT | 3/8-18 |
| W Wrench Flat | 3/4 in |
