Attributes
| Ssp Category | 90--elbow-sae-orfs |
|---|---|
| Ssp Subcategory | straight-thread-elbow-sae-orfs |
| Part Number | s10ge-m |
Description
Soft-Sea SAE, Straight Thread Elbow, 5/8 in Male Face-Sealx 7/8-14 Male SAE, Alloy 400
Specifications
| Body Material | Alloy 400 |
|---|---|
| Connection 1 - Type | SAE Male O-ring Face Seal |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 5/8 in |
| Brand Series | Soft-Seal SAE |
| Shape | Elbow |
| Tube OD | 5/8 in |
| End Connections | Male Face-Seal x Male SAE |
| Production Category | 4 |
| End Connection Type | SAE Male O-ring Face Seal by Male SAE Straight Thread |

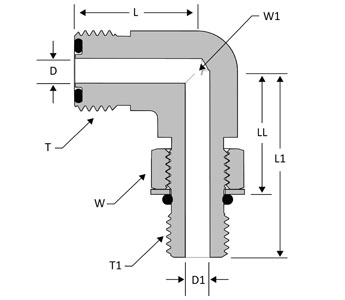

| D | 0.484 in |
| T | 1-14 |
| D1 | 0.484 in |
| L | 1.31 in |
| L1 | 1.97 in |
| LL | 1.34 in |
| T1 | 7/8-14 |
| W Hex | 1 1/16 in |
| W1 Wrench Flat | 1 1/16 in |
