Attributes
| Ssp Category | connector-sae-orfs |
|---|---|
| Ssp Subcategory | swivel-nut-male-pipe-connector-sae-orfs |
| Part Number | ss4c |
Description
SAE ORFS Swivel Nut Male Pipe Connector 1/4 Female ORFS Swivel x 1/8-27 MNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Female O-ring Face Seal Swivel |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1/8-27 |
| Brand Series | Soft-Seal SAE |
| Shape | Straight |
| Tube OD | 1/4 in |
| End Connections | Female Face-Seal x MNPT |
| Production Category | 4 |
| End Connection Type | SAE Female O-ring Face Swivel by Male National Pipe Thread |

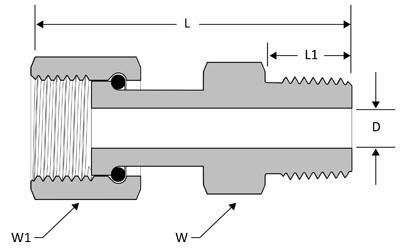

| D | 0.17 in |
| L | 1.35 in |
| L1 | 0.38 in |
| PT | 1/8 in |
| W Hex | 5/8 in |
| W1 Hex | 11/16 in |
