Attributes
| Ssp Category | connector-sae-orfs |
|---|---|
| Ssp Subcategory | bulkhead-connector---sae-orfs |
| Part Number | ss4-6bgcx |
Description
SAE ORFS 1/4 Male Face Seal x 3/8 Male SAE, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Male O-ring Face Seal |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 3/8 in |
| Brand Series | Soft-Seal SAE |
| Shape | Straight |
| Tube OD | 1/4 in |
| End Connections | Male Face-Seal x Female MS/SAE straight thread |
| Production Category | 4 |
| End Connection Type | SAE Male O-ring Face Seal by Male SAE Straight Thread |

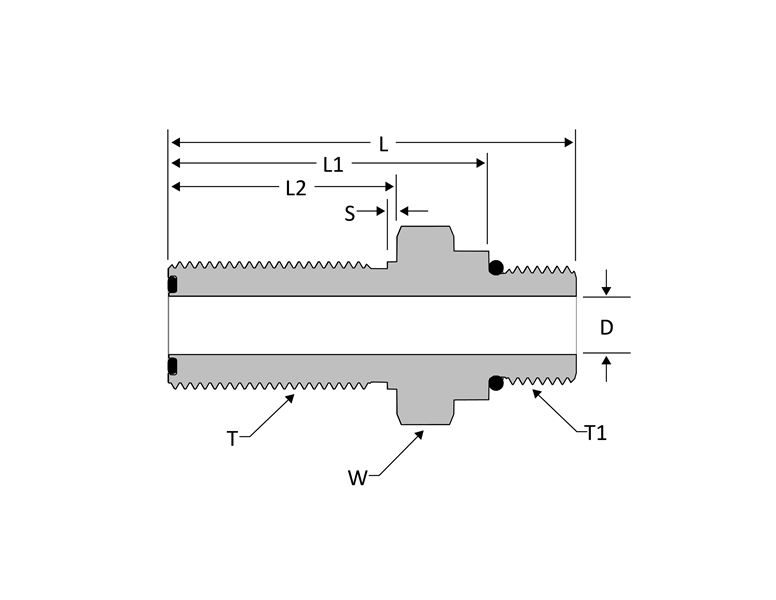

| D | 0.17 in |
| L | 2.18 in |
| L1 | 1.71 in |
| L2 | 1.24 in |
| T | 9/16-18 |
| T1 | 9/16-18 |
| S | 0.06 in |
| W Hex | 13/16 in |
