Attributes
| Ssp Category | connector-sae-orfs |
|---|---|
| Ssp Subcategory | straight-thread-swivel-connector---sae-orfs |
| Part Number | ss16gc |
Description
Soft-Sea SAE Straight Thread Swivel Connector, 1-5/16-12 Female SAE x 1 in Male SAE, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Female O-ring Face Seal Swivel |
| Connection 1 - Size | 1 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 1 in |
| Brand Series | Soft-Seal SAE |
| Shape | Straight |
| Tube OD | 1 in |
| End Connections | Female Face-Seal x Male SAE |
| Production Category | 4 |
| End Connection Type | SAE Female O-ring Face Swivel by Male SAE Straight Thread |

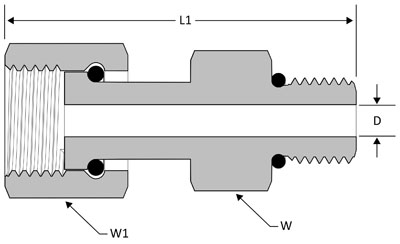

| D | 0.79 in |
| T | 1 7/16-12 |
| L1 | 2.66 in |
| W1 | 1-5/8 in |
| W | 1-1/2 in |
