Attributes
| Ssp Category | tee-sae-orfs |
|---|---|
| Ssp Subcategory | bulkhead-run-tee-sae-orfs |
| Part Number | s4brtx |
Description
SAE ORFS Bulkhead Run Tee, 1/4 in Male Face-Seal end connections, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Male O-ring Face Seal |
| Connection 1 - Size | 1/4 in |
| Connection 2 - Type | SAE Male O-ring Face Seal |
| Connection 2 - Size | 1/4 in |
| Connection 3 - Type | SAE Male O-ring Face Seal |
| Connection 3 - Size | 1/4 in |
| Brand Series | Soft-Seal SAE |
| Shape | Tee |
| Tube OD | 1/4 in |
| End Connections | Male Face-Seal x Male Face-Seal x Male Face-Seal |
| Production Category | 4 |
| Specialty | Bulkhead |
| End Connection Type | SAE Male O-ring Face Seal |

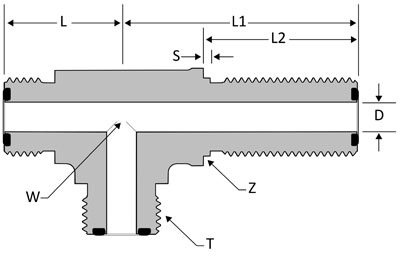

| D | 0.172 in |
| T | 9/16-18 |
| L | 0.89 in |
| L1 | 1.85 in |
| L2 | 1.24 in |
| S | 0.06 in |
| W Wrench Flat | 9/16 in |
| Z | 0.56 in |
