Attributes
| Ssp Category | tee-sae-orfs |
|---|---|
| Ssp Subcategory | swivel-nut-run-tee-sae-orfs |
| Part Number | s16srt |
Description
Soft-Sea SAE Face Seal Fittings, , Swivel Nut Run Tee, 1 Male Face-Seal x 1 Female Face-Seal x 1 Male Face-Seal, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Male O-ring Face Seal |
| Connection 1 - Size | 1 in |
| Connection 2 - Type | SAE Female O-ring Face Seal |
| Connection 2 - Size | 1 in |
| Connection 3 - Type | SAE Male O-ring Face Seal |
| Connection 3 - Size | 1 in |
| Brand Series | Soft-Seal SAE |
| Shape | Tee |
| Tube OD | 1 in |
| End Connections | Male Face-Seal x Female Face-Seal x Male Face-Seal |
| Production Category | 4 |
| End Connection Type | SAE Male O-ring Face Seal by SAE Female O-ring Face Seal Swivel |

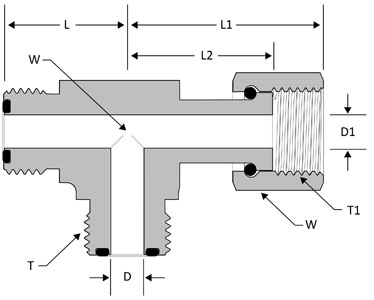

| D | 0.812 in |
| T | 1 7/16-12 |
| D1 | 0.781 in |
| L | 1.64 in |
| L1 | 2.10 in |
| L2 | 2.10 in |
| T1 | 1 7/16-12 |
| W Hex | 1 5/8 in |
| W1 Wrench Flat | 1 7/16 in |
