Attributes
| Ssp Category | union-sae-orfs |
|---|---|
| Ssp Subcategory | bulkhead-union-sae-orfs-0 |
| Part Number | s10bux |
Description
Soft-Sea SAE Bulkhead Bulkhead Union, 3/8 Male Face-Seal x 3/8 Male Face-Seal, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | SAE Male O-ring Face Seal |
| Connection 1 - Size | 5/8 in |
| Connection 2 - Type | SAE Male O-ring Face Seal |
| Connection 2 - Size | 5/8 in |
| Brand Series | Soft-Seal SAE |
| Shape | Straight |
| Tube OD | 5/8 in |
| End Connections | Male Face-Seal x Male Face-Seal |
| Production Category | 4 |
| End Connection Type | SAE Male O-ring Face Seal |

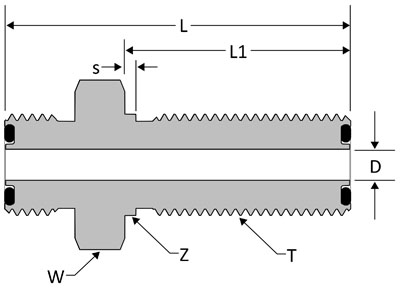

| D | 0.48 in |
| T | 1-14 |
| L | 2.62 in |
| L1 | 1.60 in |
| S | 0.06 in |
| W Hex | 1 5/16 in |
| Z | 1.00 in |
