Special Alloys Tube Fittings · Male Connector Duolok 2

Part # IMD10MC8, Male Connector - Duolok

Scraped SKU: ssp-imd10mc8-1 2026-06-05 01:23:22

Attributes

Ssp Categoryspecial-alloys-tube-fittings
Ssp Subcategorymale-connector-duolok-2
Part Numberimd10mc8-1

Description

Duolok Male Connector, 5/8 Tube Fitting x 1/2-14 MNPT, Alloy 400

Specifications

Body MaterialAlloy 400
Connection 1 - TypeTube Fitting
Connection 1 - Size5/8 in
Connection 2 - TypeMale National Pipe Thread
Connection 2 - Size1/2-14
Brand SeriesDuolok
ShapeStraight
End ConnectionsTF x MNPT
Production Category4
End Connection TypeDuolok Tube End by Male National Pipe Thread

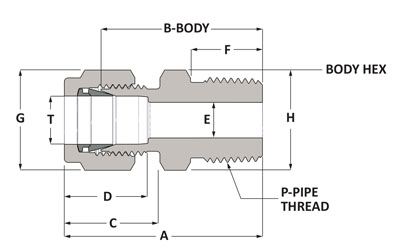

A1.93 in
C0.86 in
D0.96 in
E0.47 in
F0.75 in
G1 in
H15/16 in
P1/2 in
T5/8 in
B1.53 in

PDF Documents

Tapered Pipe Fitting Installation Instructions Open PDF
Duolok Tube Fitting Assembly Card Open PDF
Alloys Catalog - APPC-20C Open PDF
