Attributes
| Ssp Category | special-alloys-tube-fittings |
|---|---|
| Ssp Subcategory | special-alloys-male-elbow-duolok |
| Part Number | ihcd6me8-1 |
Description
Duolok Male Elbow, 3/8 in. Tube Fitting x 1/2-14 MNPT, Alloy C-276
Specifications
| Body Material | Alloy C-276 |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/8 in |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 1/2-14 |
| Brand Series | Duolok |
| Shape | Elbow |
| End Connections | TF x MNPT |
| Production Category | 1 |
| End Connection Type | Duolok Tube End by Male National Pipe Thread |

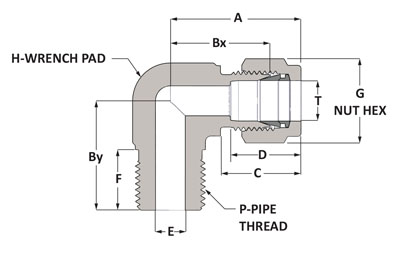

| A | 1.31 in |
| Bx | 1.02 in |
| By | 1.30 in |
| C | 0.76 in |
| D | 0.66 in |
| E | 0.28 in |
| F | 0.75 in |
| G | 11/16 in |
| H | 7/8 in |
| P | 1/2 in |
| T | 3/8 in |
