Attributes
| Ssp Category | npt-thread-elbows-trufit |
|---|---|
| Ssp Subcategory | 45--street-elbow-trufit-trufit |
| Part Number | ibt6se45 |
Description
TruFit 45° Street Elbow, 3/8 FNPT x 3/8 MNPT, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Female National Pipe Thread |
| Connection 1 - Size | 3/8-18 |
| Connection 2 - Type | Male National Pipe Thread |
| Connection 2 - Size | 3/8-18 |
| Brand Series | TruFit |
| Shape | Elbow |
| P1 | 3/8 |
| End Connections | FNPT x MNPT |
| Production Category | 4 |
| End Connection Type | Female National Pipe Thread by Male National Pipe Thread |

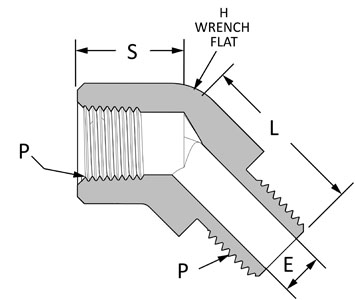

| E | 0.37 in |
| H | 7/8 in |
| P | 3/8-18 in |
| L | 1.06 in |
| S | 0.72 in |
PDF Documents
TruFit - TruFit10K Pipe Fittings Catalog
Open PDF
