Attributes
| Ssp Category | npt-thread-elbows-trufit |
|---|---|
| Ssp Subcategory | female-45--elbow---trufit |
| Part Number | ibt2e45 |
Description
TruFit 45° Female Elbow, 1/8-27 FNPT x 1/8-27 FNPT, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Female National Pipe Thread |
| Connection 1 - Size | 1/8-27 |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 1/8-27 |
| Brand Series | TruFit |
| Shape | Elbow |
| End Connections | FNPT x FNPT |
| Production Category | 4 |
| End Connection Type | Female National Pipe Thready by Female National Pipe Thread |

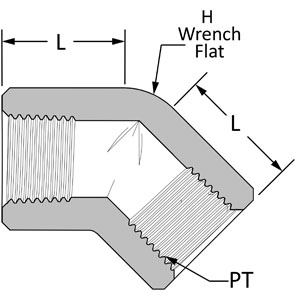

| E | 0.33 in |
| H | 9/16 in |
| PT | 1/8 in |
| L | 0.50 in |
