Attributes
| Ssp Category | tube-fitting-to-sae-thread-fitting-duolok |
|---|---|
| Ssp Subcategory | 90--male-elbow-sae-duolok |
| Part Number | ibd6mest6-1 |
Description
Duolok 90° Male Elbow SAE Thread, 3/8 Tube Fitting x 9/16-18 Male SAE, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 3/8 in |
| Connection 2 - Type | Male SAE Straight Thread |
| Connection 2 - Size | 3/8 in |
| Brand Series | Duolok |
| Shape | Elbow |
| O-ring Material | FKM |
| End Connections | TF x Male SAE |
| Production Category | 4 |
| End Connection Type | Duolok Tube End by Male SAE Straight Thread |

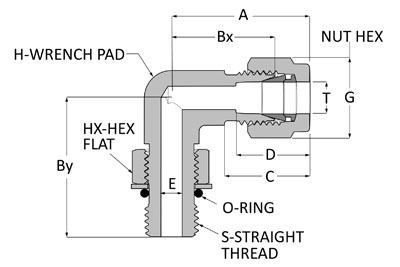

| A | 1.26 in |
| Bx | 0.97 in |
| By | 1.27 in |
| C | 0.76 in |
| D | 0.66 in |
| E | 0.28 in |
| G | 11/16 in |
| H | 9/16 in |
| T | 3/8 in |
| AS568 O-Ring Uniform Size Number | -906 |
| Hx | 11/16 in |
| S | 9/16-18 |
