Part # ISST16AN12MST, Male AN - Male SAE Thread - TruFit

Attributes

Ssp Category	an-fittings-adapters-trufit
Ssp Subcategory	male-an-male-sae-thread-trufit
Part Number	isst16an12mst-1

Description

TruFit Male AN - Male SAE Thread, 1 Male AN x 1 16-12 Male SAE, 316 SS

Specifications

Body Material	316 SS
Connection 1 - Type	Male SAE 37° Flared
Connection 1 - Size	1 in
Connection 2 - Type	Male SAE Straight Thread
Connection 2 - Size	3/4 in
Brand Series	TruFit
Shape	Straight
O-ring Material	Nitrile Buna Rubber
Tube OD	1 in
End Connections	Male AN x Male SAE
Production Category	4
End Connection Type	Male SAE 37° Flare by Male SAE Straight Thread

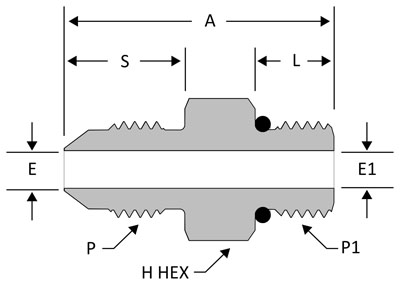

A	2.04 in
E	0.84 in
H	1 3/8 in
P	1 5/16-12
L	0.59 in
S	0.91 in
