Attributes
| Ssp Category | tube-fitting-to-bsp-thread-fitting-duolok |
|---|---|
| Ssp Subcategory | bspp-male-connector-duolok |
| Part Number | ibd2mcrs2-1 |
Description
Duolok BSPP Male Connector, 1/8 Tube Fitting x 1/8 Male BSPP, Brass
Specifications
| Body Material | Brass |
|---|---|
| Connection 1 - Type | Tube Fitting |
| Connection 1 - Size | 1/8 in |
| Connection 2 - Type | Male BSPP |
| Connection 2 - Size | 1/8-28 |
| Brand Series | Duolok |
| Shape | Straight |
| End Connections | TF x Male BSPP |
| Production Category | 4 |
| End Connection Type | Duolok Tube End by Male British Standard Pipe Parallel |

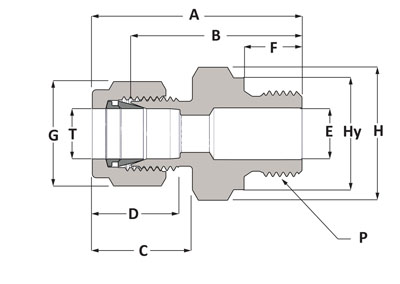

| A | 1.18 in |
| C | 0.60 in |
| D | 0.50 in |
| E | 0.09 in |
| F | 0.28 in |
| G | 7/16 in |
| H | 9/16 in |
| P | 1/8 in |
| T | 1/8 in |
| B Body | 0.92 in |
| Hy | 0.54 in |
