Attributes
| Ssp Category | 90--elbow-industrial-pipe-fittings |
|---|---|
| Ssp Subcategory | 90-female-pipe-x-straight-thread-elbow-industrial- |
| Part Number | 16x3-4gef-1 |
Description
Threaded & Adapters Female Pipe x Straight Thread Elbow, 3/4-14 FNPT x 3/4-14 FNPT, 316 SS
Specifications
| Body Material | 316 SS |
|---|---|
| Connection 1 - Type | Male SAE Straight Thread |
| Connection 1 - Size | 1 in |
| Connection 2 - Type | Female National Pipe Thread |
| Connection 2 - Size | 3/4-14 |
| Brand Series | Threaded & Adapters |
| Shape | Elbow |
| End Connections | FNPT x FNPT |
| Production Category | 3 |
| End Connection Type | Male SAE Straight Thread by Female National Pipe Thread |

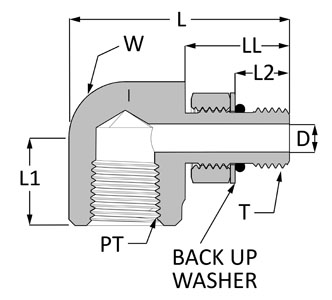

| D | 0.88 in |
| L | 2.05 in |
| L1 | 0.81 in |
| L2 | 0.66 in |
| LL | 1.16 in |
| PT | 3/4-14 |
| T Thread | 1 5/16-12 |
| W Wrench Flat | 1 5/16 in |
