Tube Fitting Unions Duolok · Bulkhead Union Duolok

Part # IMD12BU, Bulkhead Union - Duolok

Scraped SKU: ssp-imd12bu-1 2026-06-05 01:11:44

Attributes

Ssp Categorytube-fitting-unions-duolok
Ssp Subcategorybulkhead-union-duolok
Part Numberimd12bu-1

Description

Duolok Bulkhead Bulkhead Union, 3/4 Tube Fitting x 3/4 Tube Fitting, Alloy 400

Specifications

Body MaterialAlloy 400
Connection 1 - TypeTube Fitting
Connection 1 - Size3/4 in
Connection 2 - TypeTube Fitting
Connection 2 - Size3/4 in
Brand SeriesDuolok
ShapeStraight
SpecialtyBulkhead
End ConnectionsTF x Tube Fitting
Production Category4
End Connection TypeDuolok Tube End

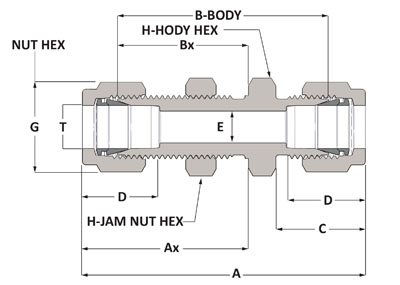

A3.11 in
Bx1.47 in
C0.86 in
D0.96 in
G1 1/8 in
H1 3/16 in
T3/4 in
Ax1.87 in
B2.31 in
Maximum Panel Thickness0.66 in
Panel Hole Drill Size1 1/64 in

PDF Documents

Duolok Tube Fittings Catalog Open PDF
Duolok Tube Fittings Catalog - Metric Open PDF
Duolok Tube Fitting Assembly Card Open PDF
